Waterproof Cube Case

[Product Features]
Cube-shaped waterproof case.
All six sides of the case are removable, and the panels can be replaced to customize the specifications to suit the application.

Accessories
Aluminum frame
Acrylic panel (5 sides)
Aluminum panel (with tripod hole for bottom) 1 side

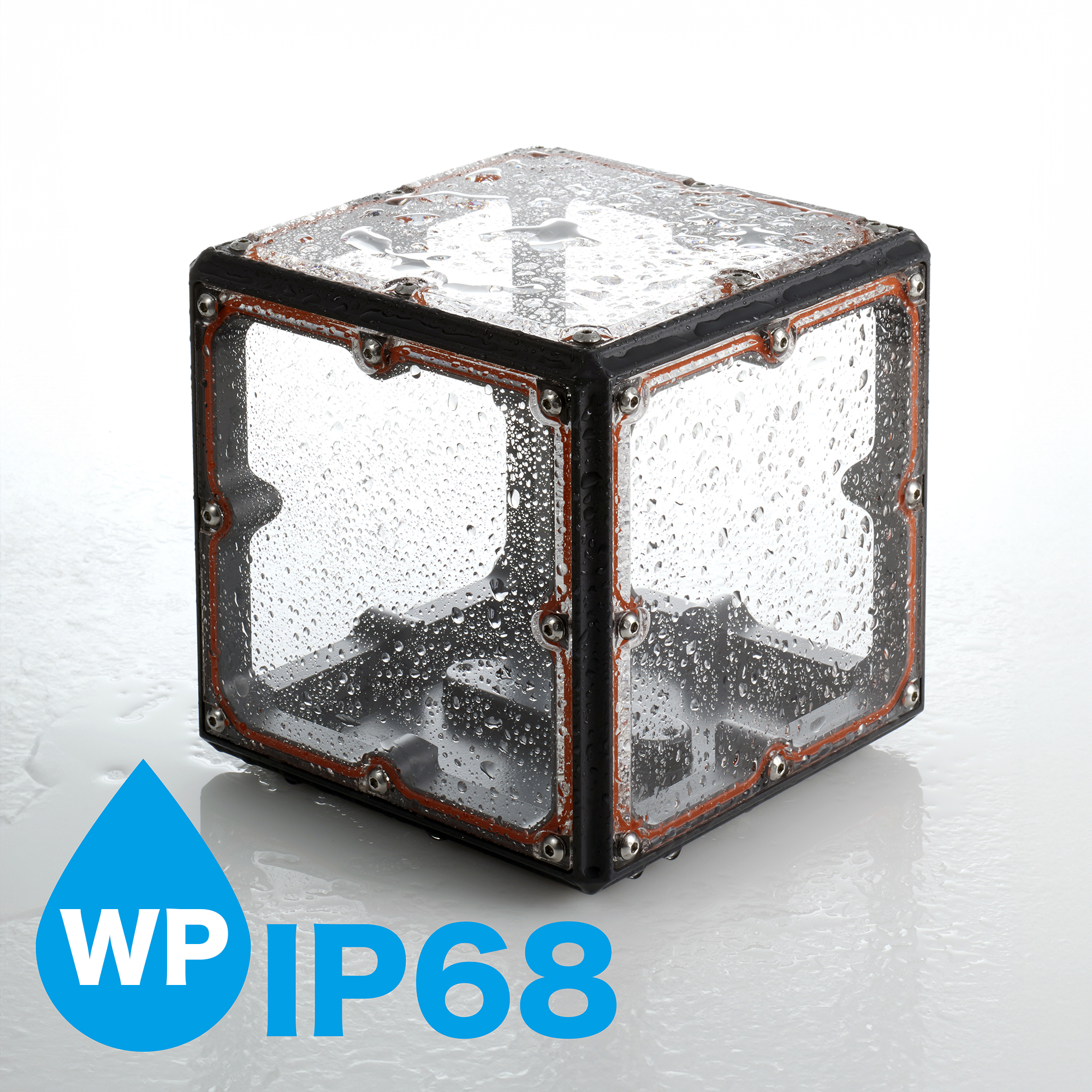

IP68-compliant cube-shaped waterproof case
This cube-shaped waterproof case (enclosure) complies with IP68 dustproof and waterproof performance.
It features a high degree of customizability, allowing you to change the specifications to suit your application by replacing the panels.

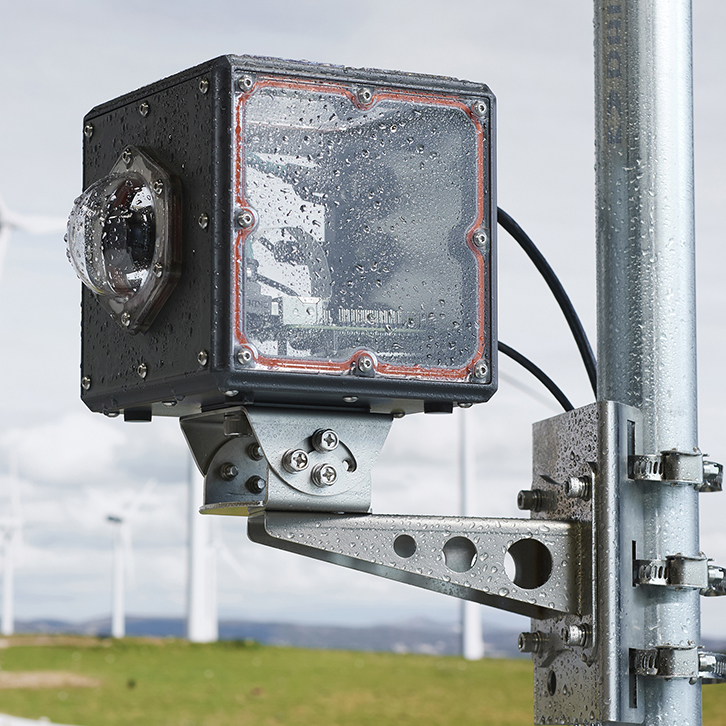

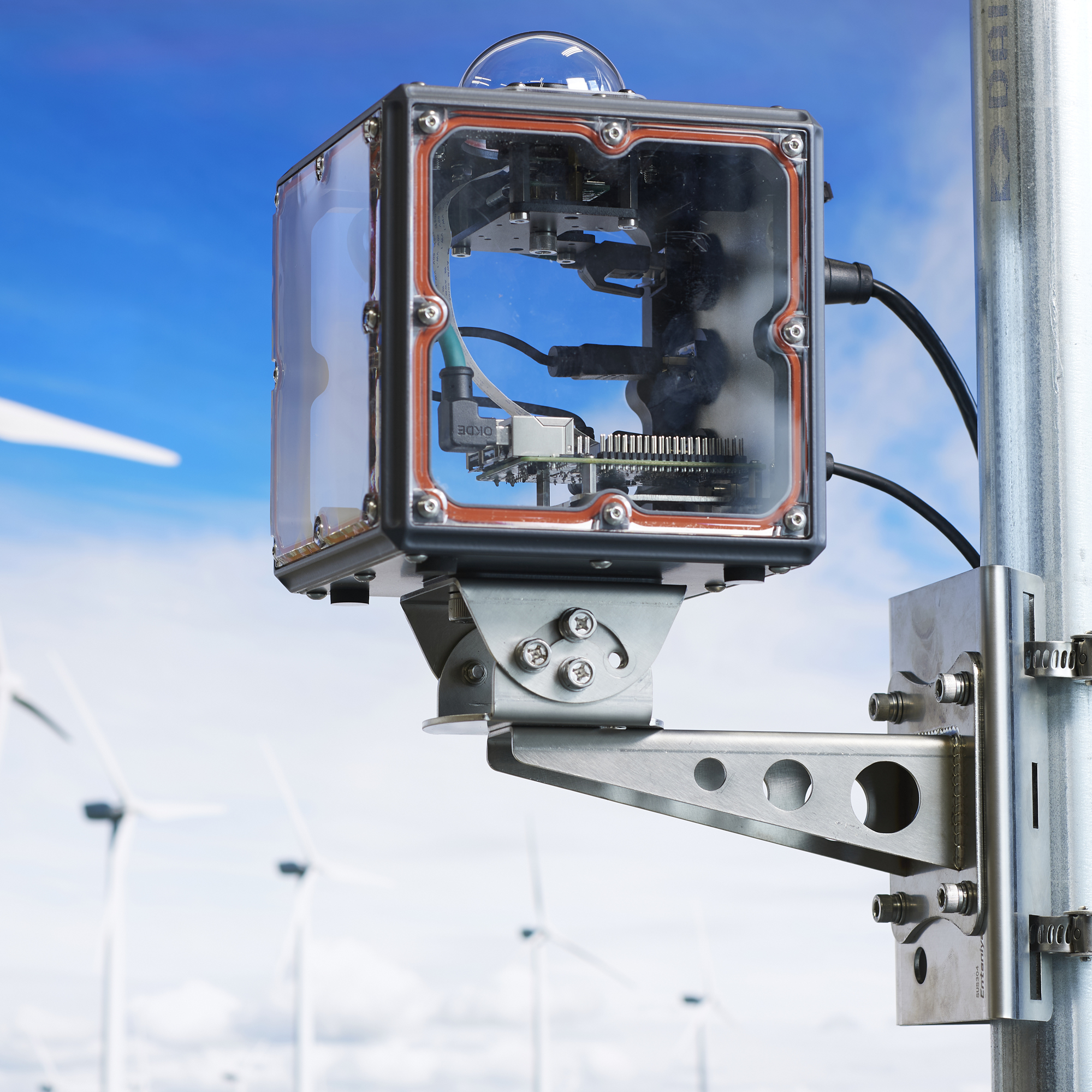

It can be installed outdoors or submerged underwater for measurement and observation.

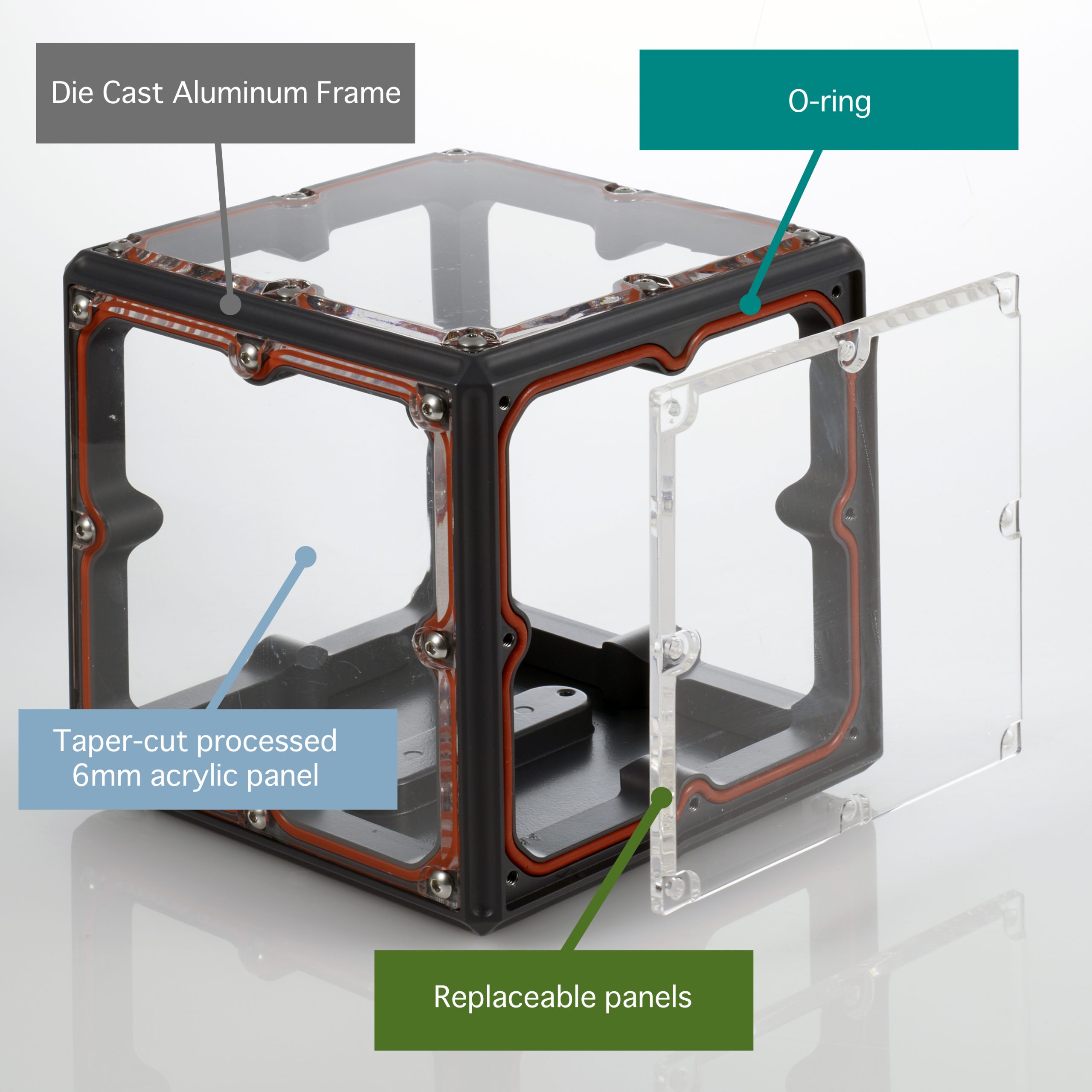

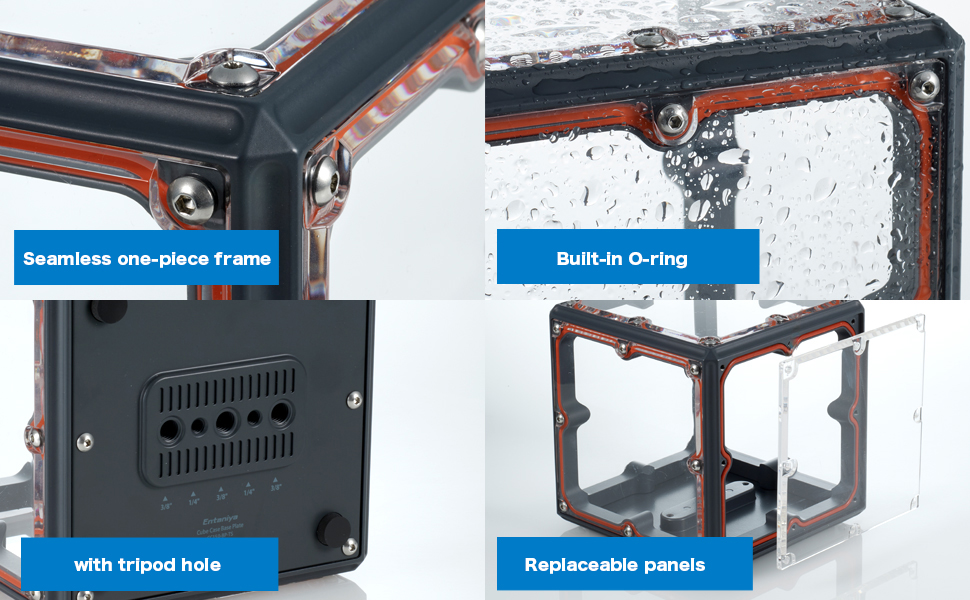

Seamless frame
One of the reasons for the high waterproof performance is the seamless one-piece frame. It is manufactured by die-cast molding.

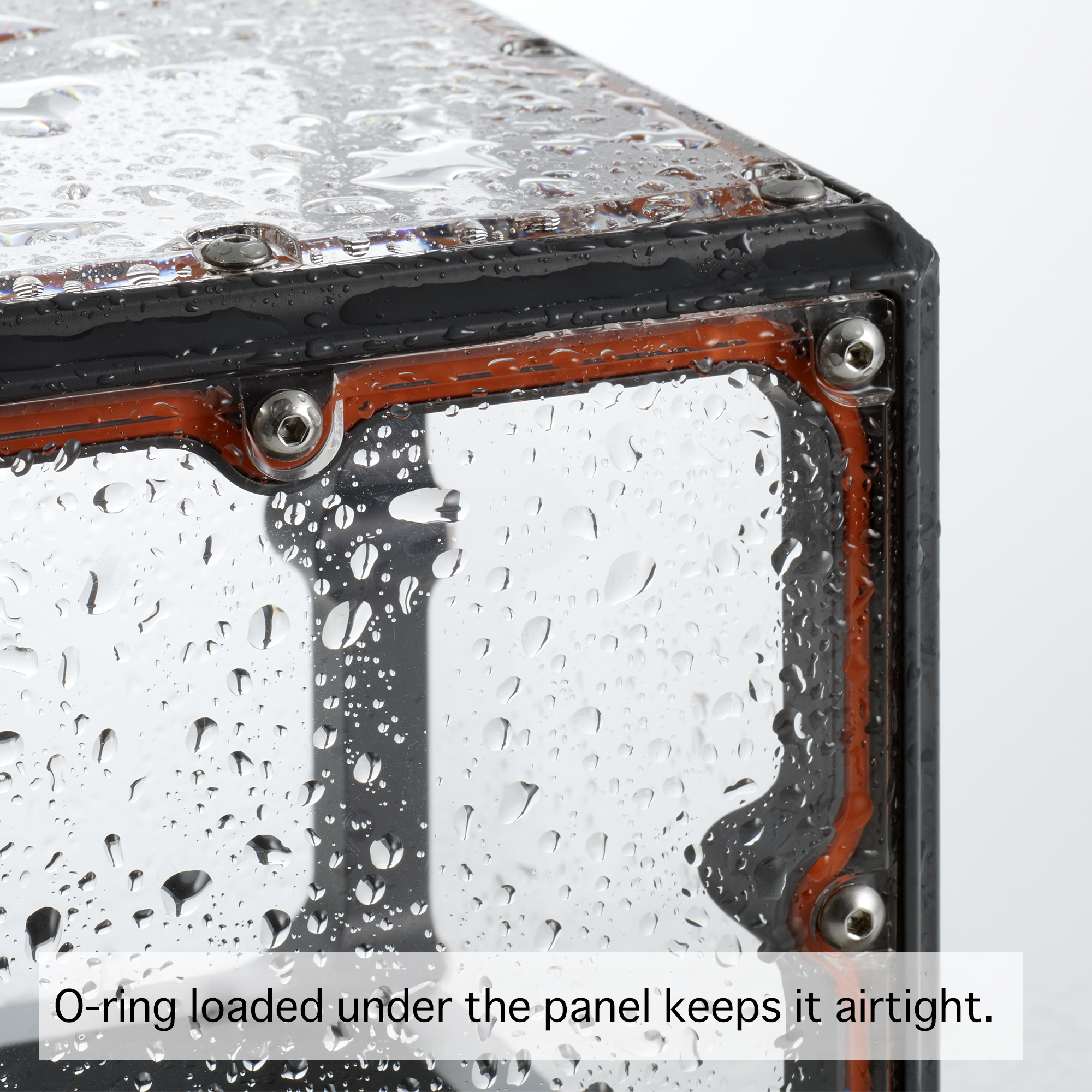

O-rings
O-rings under each panel prevent water from seeping through the panel.

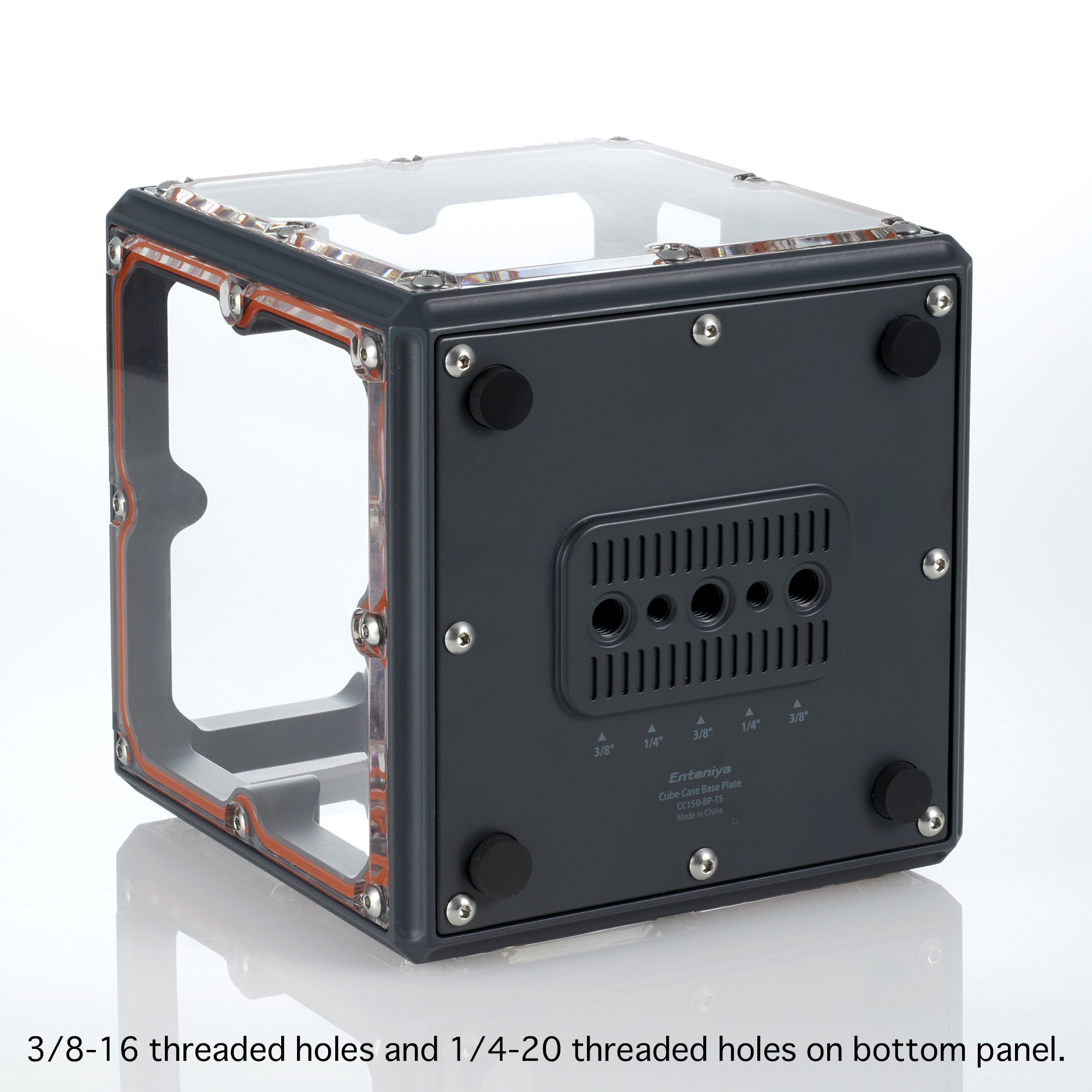

Bottom panel with tripod screw holes
The panels used on the bottom have standard screw holes (1/4“-20, 3/8”-16) for tripods and other photographic equipment.

Removable and Replaceable Panels
All six panels can be removed and replaced.
You can customize the panels to suit your needs or replace only the damaged panels.

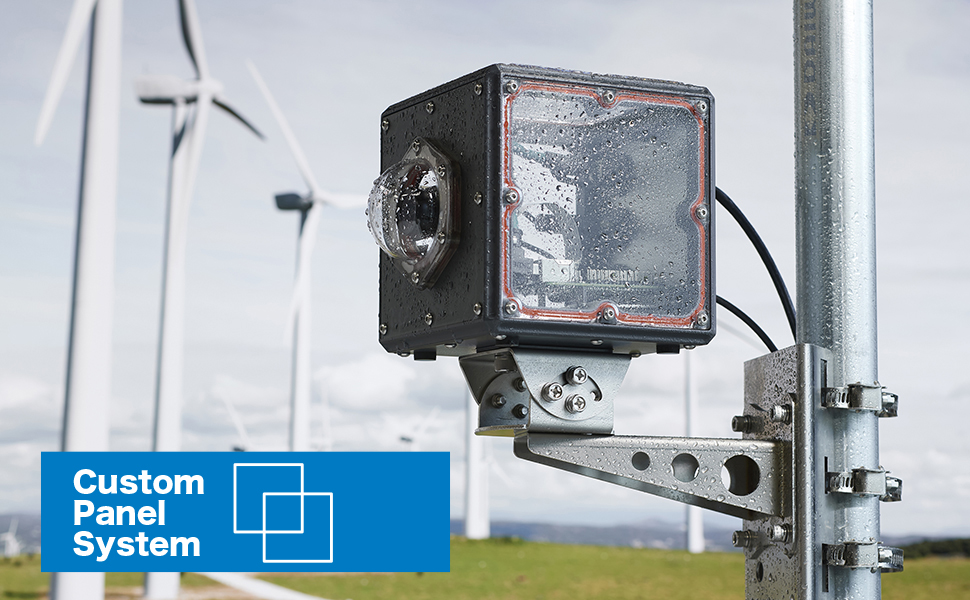

Custom panel system] that allows panels to be interchanged according to the application.

The main feature of the waterproof cube case is its system of interchangeable panels.

This system takes advantage of the cube shape, making it possible to attach and detach panels on all six sides of the cube.

If a panel is damaged or cracked, it can be repaired to its original state by replacing only that panel.

The panels can also be customized to suit the intended use, for example, a camera can be built in, safety wires can be attached to prevent dropping, or connectors can be attached to connect cables between the inside of the case and the outside.

Panels for Customization
Dome Panel
This panel with a dome cover is useful for installing a camera inside the case or checking instruments.
The height of the dome can be selected according to the size of the camera.

Waterproof Connector Panel
This panel is for installing a waterproof connector, which is useful for connecting cables inside the case.
The panel has pre-drilled holes for waterproof connectors.

Wire Attachment Panel
This panel is processed so that wires can be attached to the aluminum panel.
This panel can be used to attach wires to prevent the case from falling or being washed away when the case is installed at a high place or in a river, etc.

Waterproof property can be maintained by attaching a cable gland to the holes drilled in the panel and passing the wires through it.

Panel with tripod hole
This panel is for the bottom, but can be used on multiple sides to provide expandability, such as attaching a magic arm or other photographic equipment using the camera screw holes drilled in the panel.

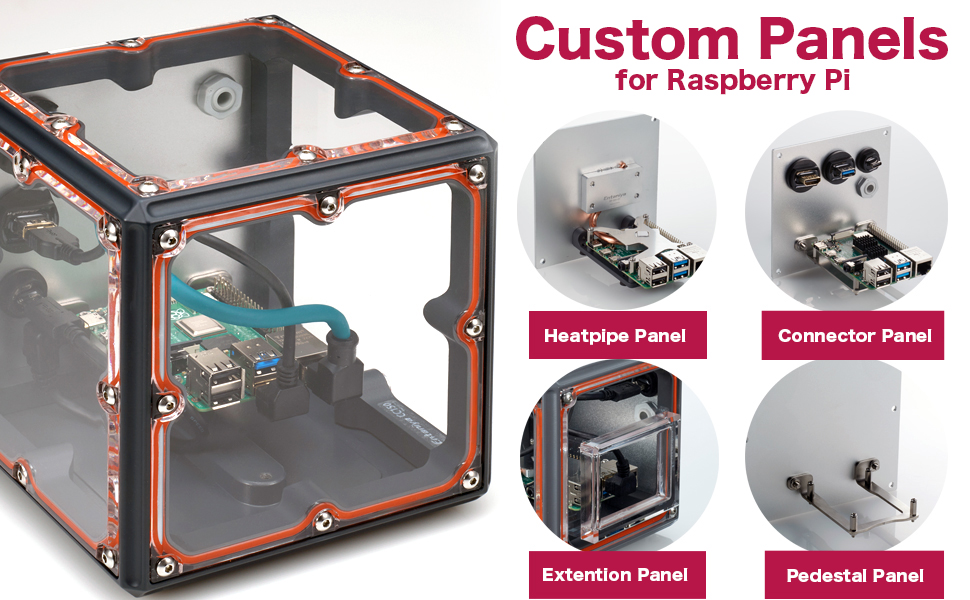

Customized Panel for Raspberry Pi

Heat pipe panel
This panel can be connected to the heat pipe for RASPIE 4/5. This panel can dissipate heat generated by RASPIE to the outside for cooling, preventing temperature rise even in a sealed case and stabilizing operation.
Includes a pedestal and heat pipe for installing Raspberry Pi.

Panel for Raspberry Pi pedestal
Panel with a pedestal for installing the Raspberry Pi main unit.

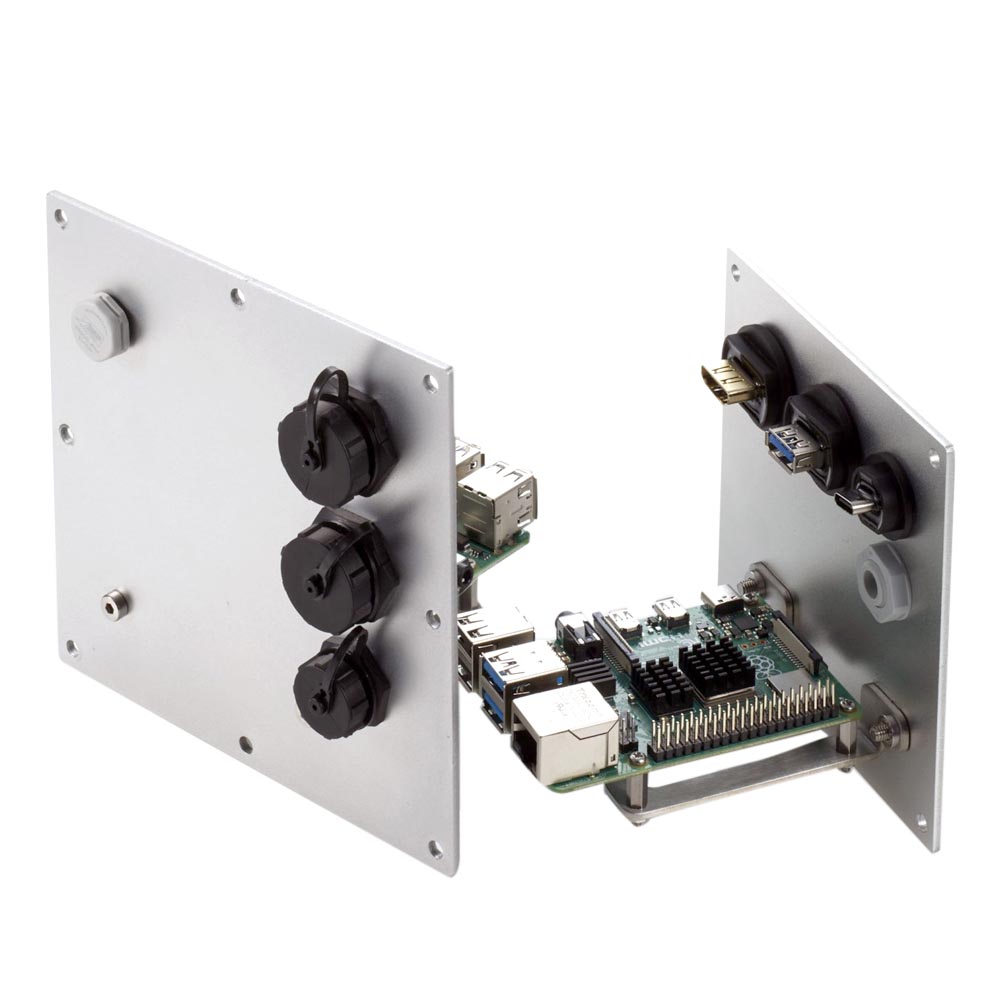

Connector panel with Raspberry Pi pedestal
Panel for Raspberry Pi pedestal with holes for attaching waterproof connectors for cable connection to the Raspberry Pi inside the case.
Waterproof connectors for HDMI, USB-C, USB 3.0, RJ45, etc. can be attached.

Panel for expansion (125 only)
When using a heat pipe panel for Raspi in a 125 size case, USB 3.0 or RJ45 ports cannot be used because the panel and cable head interfere with each other.

This convex panel solves this problem.

Custom parts are here >

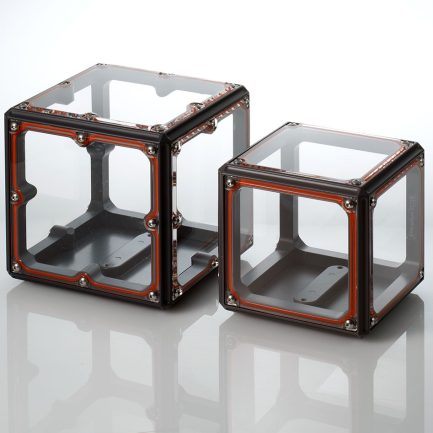

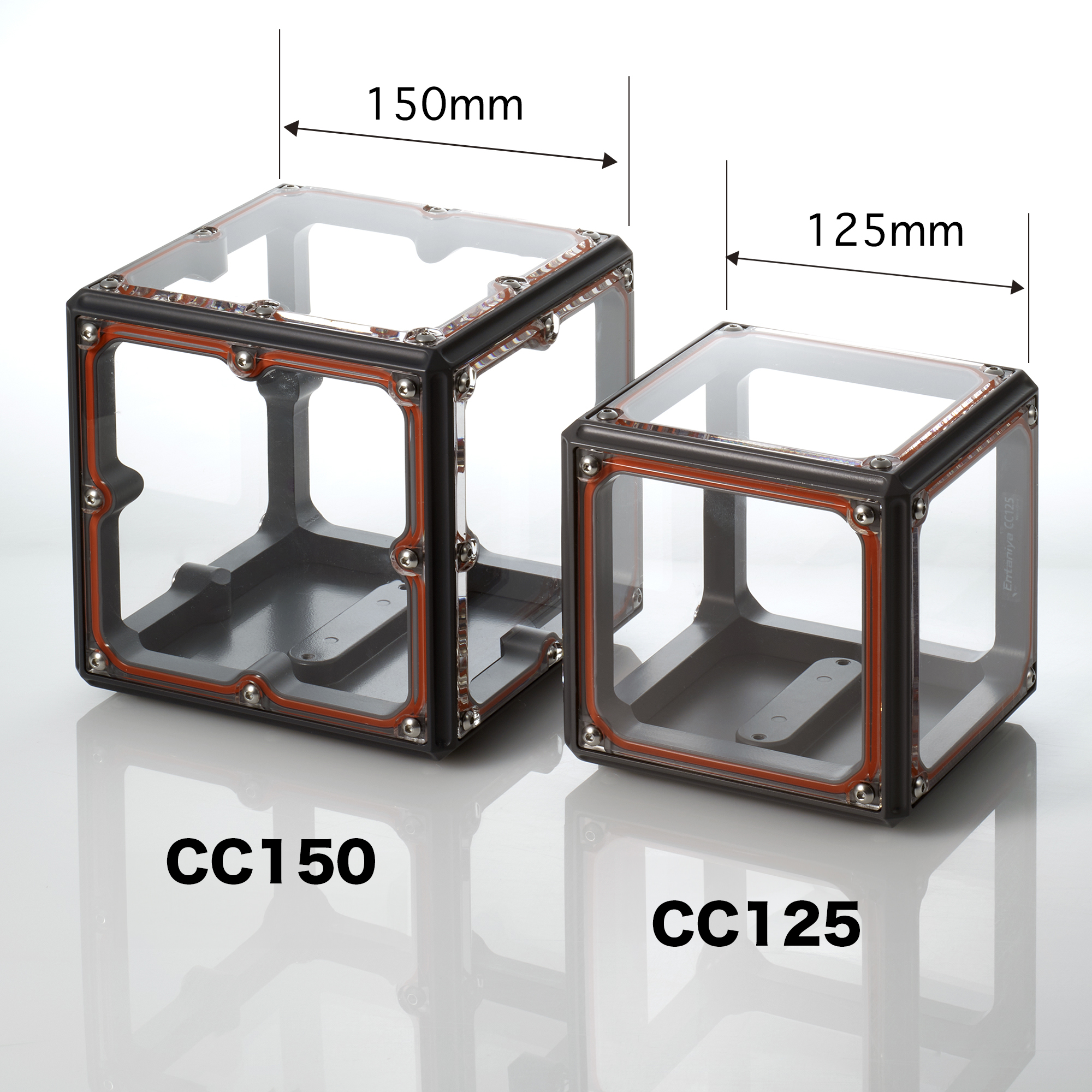

Product Size
CCWP-125 External size 125 x 125 x 125mm
CCWP-150 External size 150 x 150 x 150mm
