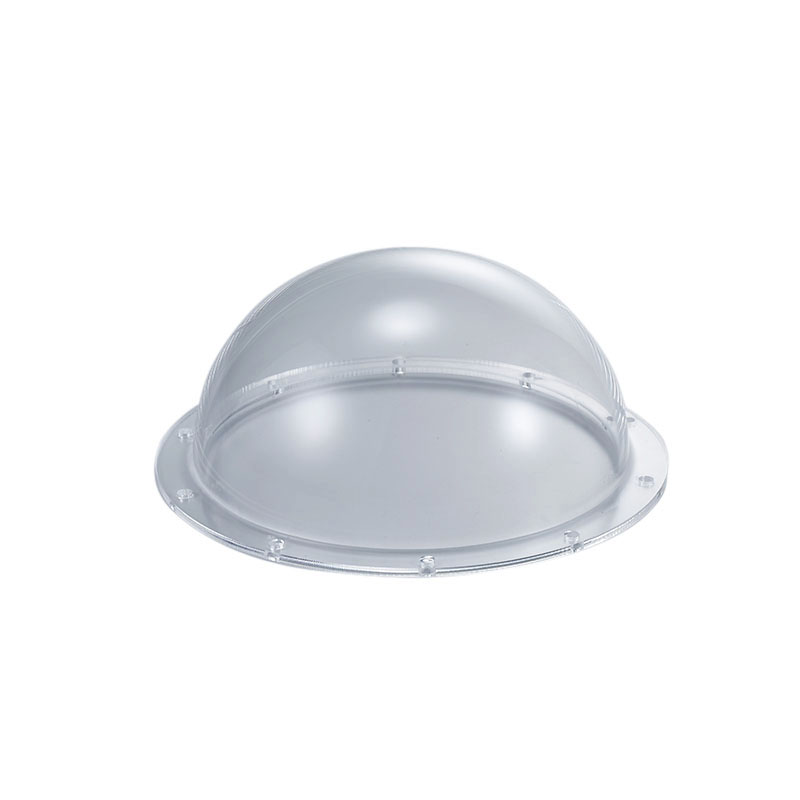

Acrylic Dome Covers
¥880 – ¥2,500 Tax-exclusive price
Dome Covers

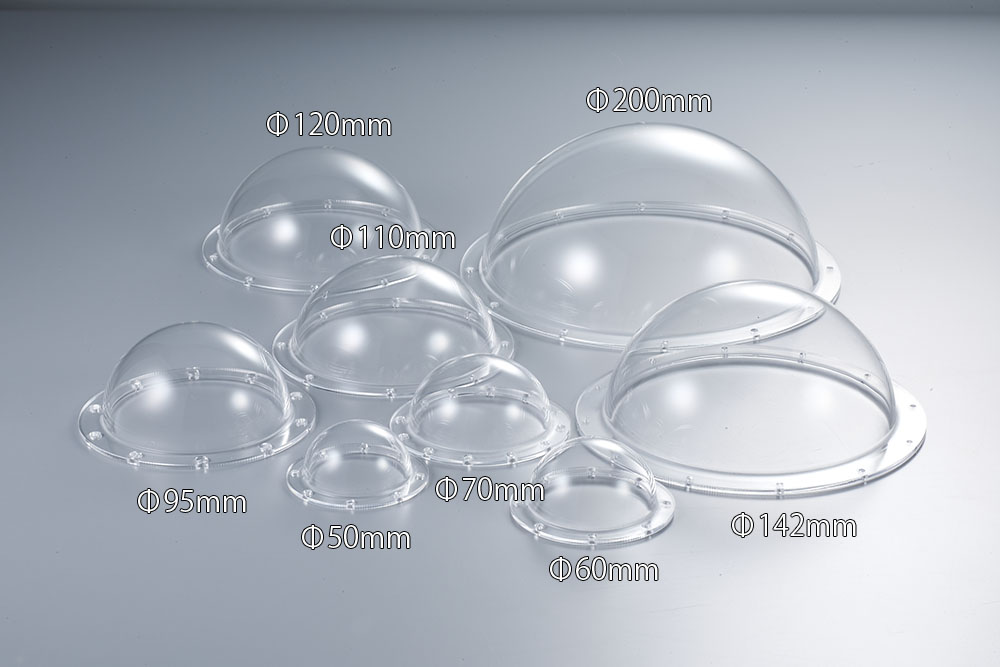

8 sizes (diameter): 50mm / 60mm / 70mm / 95mm / 110mm / 120mm / 142mm / 200mm
Prices, specifications, and designs are subject to change without notice.
DC-50
Height：28±1mm
Outer Diameter：54±1mm
Base Diameter：70±1mm
Fixed Part Thickness：2.8±0.5mm
Fixed Points:8 Points Φ4mm
DC-60
Height：34±1mm
Outer Diameter：62.5±1mm
Base Diameter：79±1mm
Fixed Part Thickness：2.8±0.5mm
Fixed Points:8 Points Φ4mm
DC-70
Height：39±1mm
Outer Diameter：74.5±1mm
Base Diameter：93±1mm
Fixed Part Thickness：2.8±0.5mm
Fixed Points:12 Points Φ5mm
DC-95
Height：48±1mm
Outer Diameter：97.5±1mm
Base Diameter：122±1mm
Fixed Part Thickness：2.8±0.5mm
Fixed Points:10 Points Φ6mm
DC-110
Height：51±1mm
Outer Diameter：112.5±1mm
Base Diameter：132±1mm
Fixed Part Thickness：2.8±0.5mm
Fixed Points:8 Points Φ4mm
DC-120
Height：62±1mm
Base Diameter：143±1mm
Fixed Part Thickness：3±0.5mm
Fixed Points:10 Points M4
DC-142
Height：71±1mm
Base Diameter：181±1mm
Fixed Part Thickness：3±0.5mm
Fixed Points:12 Points M3
DC-200
Height：82.5±1mm
Base Diameter：223±1mm
Fixed Part Thickness：3±0.5mm
Fixed Points:12 Points M4
Additional information
| Weight | 1000 g |
|---|---|
| Sizes (diameter) | 50mm, 60mm, 70mm, 95mm, 110mm, 120mm, 142mm, 200mm |
